WOTJE ATOLL POWER SYSTEM
| DATE OF STARTUP: |
3rd September 2003 |

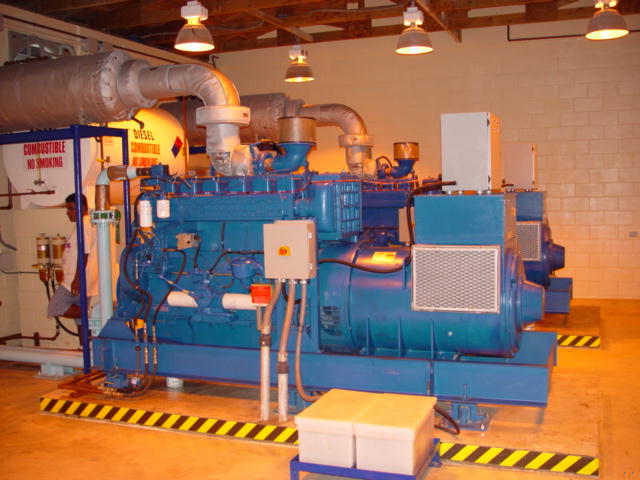

| POWER SOURCE: | Wartsila UD25L6S5D Diesels |
| NUMBER OF GENERATORS: | 2 units (with option for 3rd unit) |
| SERIAL NUMBERS: | Engine #1 = 50758 |
| Engine #2 = 50759 | |
| RATED POWER OUTPUT: | 275kW @ 1200Rpm each unit |
| HOURS OF OPERATION: | 24 hours, 7 days a week. |
| DISTRIBUTION TRANSFORMER: | 300kVA |
| DISTRIBUTION SYSTEM: | 4160 Volt, 3 Phase. Underground. |
| SECONDARY TRANSFORMER: | 25kVA 4160/240V |
| SECONDARY SYSTEM: | 240/120V 60Hz Single phase, underground. |

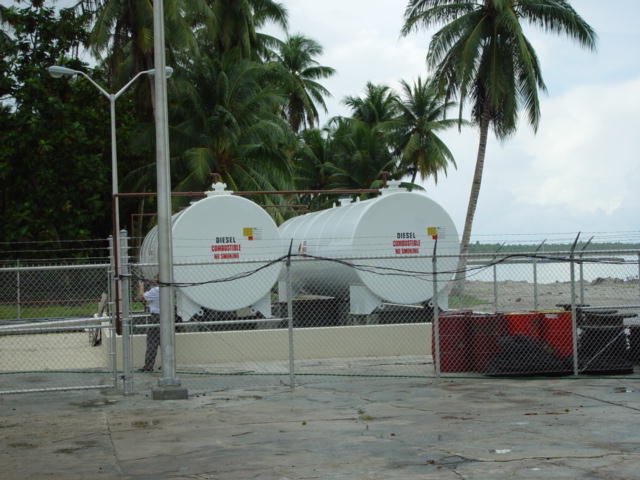

| FUEL STORAGE CAPACITY: | 20,000 USGals |
| CURRENT LOAD |
133kW as at 1st October 2005 |
| CHARGE COST PER kWh: | See Tariff page |
